IV. Precise Adjustment of Process Parameters (Direct Landing Parameters)
Core parameter range (PP general standard)
Welding mode: Energy mode preferred
Welding pressure: Medium to low pressure (3–5 bar). High pressure is strictly prohibited (causes weld line collapse, flash, and deformation).
Welding time: Short, rapid welding: 0.2–0.6 s
Hold pressure / shaping: Extended hold: 0.8–2 s
Key point: PP has strong resilience after melting. Extended hold = prevents cracking, warping, and ensures sealing.
Trigger pressure: Slight preload for alignment; avoid hard contact that cracks the plastic part.
Fine-tuning parameters for common issues
Weak weld / easy break → Increase energy / raise amplitude / slightly increase weld time
Flash, burrs, yellowing → Reduce pressure, lower energy, shorten weld time
Deformation, warping → Reduce clamping force, extend hold time, improve conformity of profiling fixture
White weld seam / vibration marking → Reduce amplitude, add silicone cushion pad
V. Fixture and Tooling Optimization (Addressing Deformation, Indentation, and Misalignment)

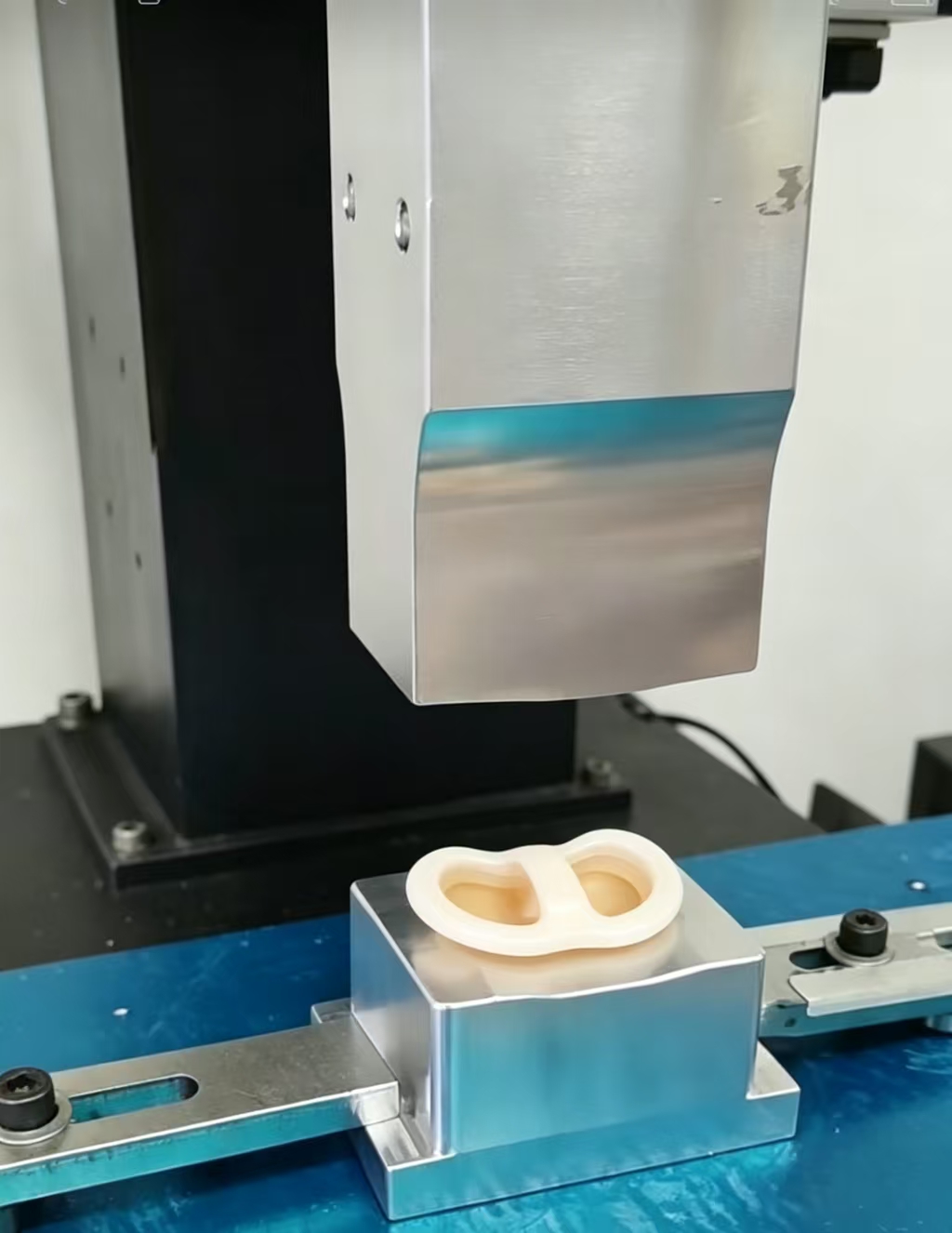

Fully conformal anti-vibration fixture – PP is soft and prone to vibration-induced deformation. The lower mold must fully conform to the product shape to disperse vibration stress.
Protective buffer fixture – Line the inner wall with high-temperature silicone or felt to prevent indentations, whitening, and scratches.
Positioning and limiting tooling – For irregular toy parts and non-standard food accessories, use precise locating pins / slots to avoid mold misalignment and partial false welding.
Ring / round covers – Add concentric circular stops to prevent eccentric welding and leakage.
VI. Environmental and Mass Production Control (Stable Yield)
Workshop temperature control (20–28°C) – Low temperature makes PP hard and brittle; high temperature makes PP too soft and causes severe flash.
Constant temperature conditioning before welding – Parts that are either hot (freshly injection-molded) or cold (taken from cold storage) must be held at room temperature before welding. Direct welding will cause defects.
Regular maintenance – Clean the welding horn, calibrate frequency, inspect cylinders to prevent batch defects from equipment degradation.
VII. Quick Troubleshooting Table
On‑site Issue Quick Solution
False welding / low strength Increase sharp weld line + raise amplitude + switch to energy mode
Leakage / poor sealing Full‑circle continuous weld line + step alignment + extended hold time
Flash, sharp burrs Add flash groove on outer side + reduce welding pressure
Warping, sink marks Full conformal fixture + medium/low pressure + extended hold time
Unstable batch yield Switch from time mode to energy mode + regulated air supply
Yellowing, burnt smell Reduce energy, shorten weld time, lower amplitude
Baby product cracking from biting Add structural ribs + optimize PP raw material + avoid over‑welding
VIII. Reinforcement Solutions for Special Scenarios (High‑Demand Customers)
Food containers requiring boiling / high‑temperature disinfection – Slightly increase welding energy to ensure deep molecular fusion, preventing delamination or cracking at high temperatures.
Baby teethers / chewable toys – Do not over‑weld (makes parts brittle). Use “medium energy + low pressure + extended hold time” for tougher weld seams.
Ultra‑thin wall / extremely small mini toys – Use a 20 kHz high‑frequency precision machine with a micro custom horn to reduce vibration impact.
