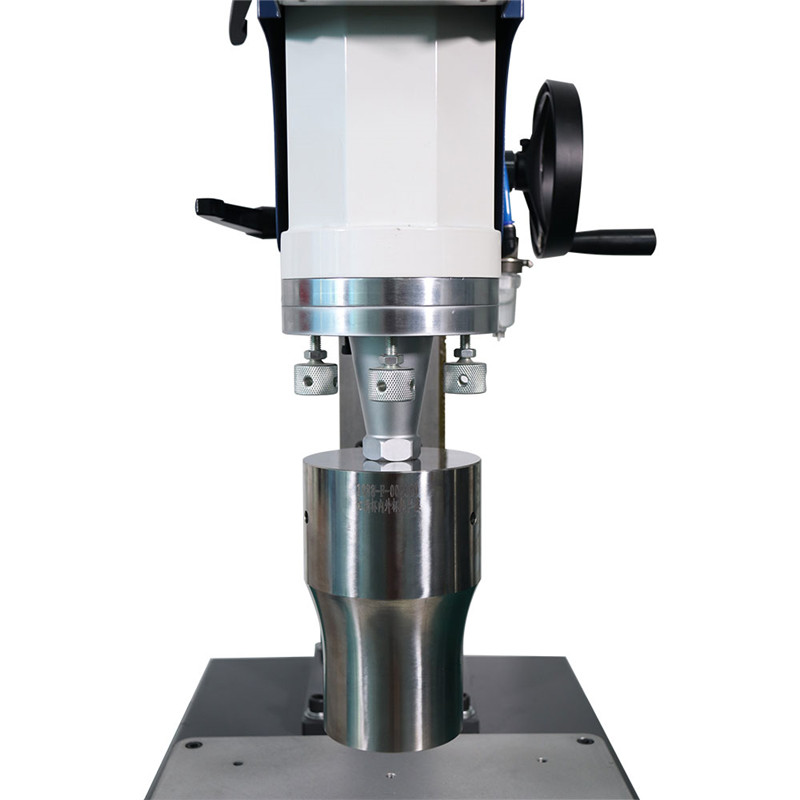

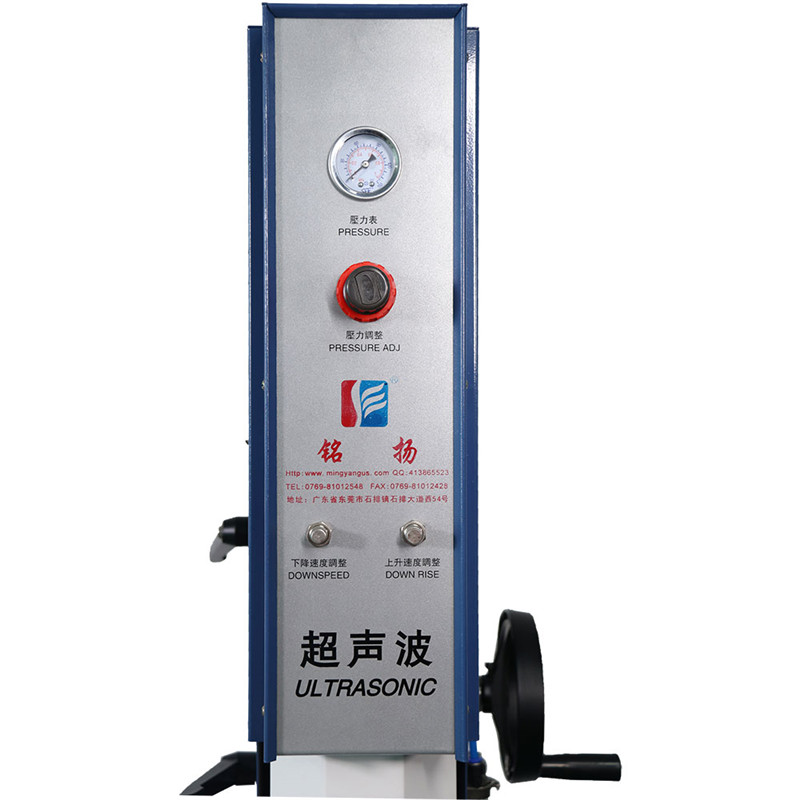

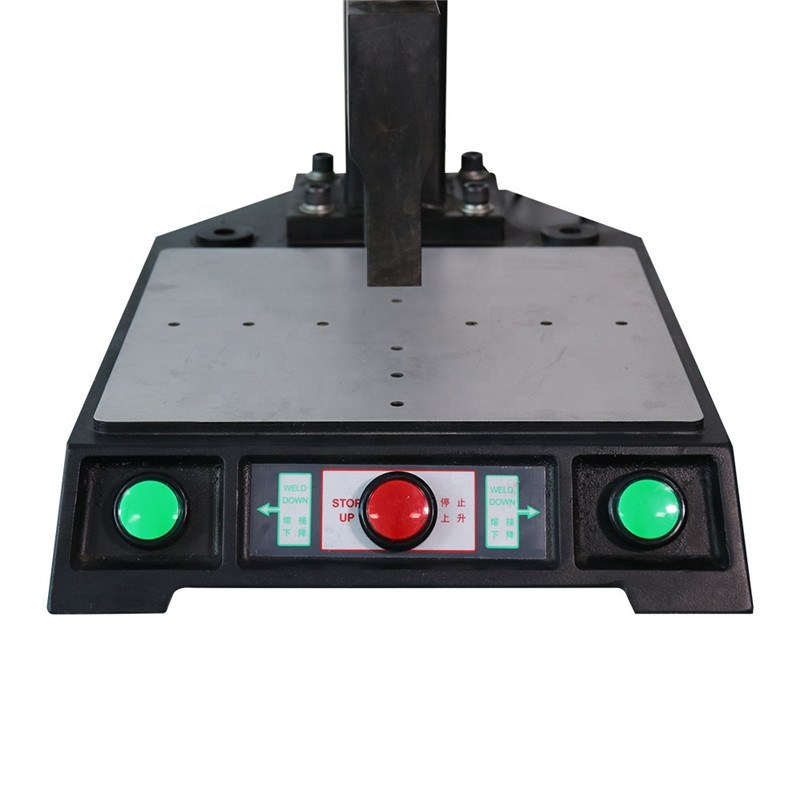

15KHZ 3200W Intelligent Ultrasonic plastic welder for Welding Electronics and Supplies

Short Description:

Automatic digital tracking; Digital amplitude control; Controllable starting speed; Diversified welding modes; Record the parameters of each welding Self-diagnosis and control;counter tracking production


  • Model: MY-SZN1532-S
  • Frequency: 15k
  • Power: 3200w
  • Voltage: 110V/220V
  • Mould: Can be customized by your products
  • Product Detail

    Contact Us

    Product Tags

    Specification

    Model MY-SZN1532-S
    Frequency 15k
    Power 3200w
    Voltage 110v/220v
    Welding time 0.01-9.99s
    Weight 120kg
    Machine Size 700*398*1185mm
    Warranty 1 year
    Service OEM/ODM
    Driven Type Pneumatic air Pipe diameter 8mm

    Features

    1. Three models: energy model, time model and depth model

    2. Adopt CHEKIC pneumatic pats and control system, the output power is stable.

    3. Adopt the Original transducer from Taiwan, titanium alloy booster is sturdy and durable, steel frame with square column, Rapid high pressure operation with no tilt.

    4. Adopt the digital voltage regulator of generator, the output power is stable, Humanized touch screen operation, password protection management, welding parameters can be preserved.

    5. Amplitude adjustable.

    6. Variety of intelligent welding models can be chosen,automatic frequency tracking, and high welding precision.

    Competitive Advantage

    △ High efficiency---It only takes 0.1-3 seconds at each time.

    △ High strength---Weld joints can withstand big tensile force and high pressure.

    △ High quality---Weld joints are water-tight and air-proof; airtight operation is guaranteed.

    △ Economy---Keep costs down and reduce manpower by getting rid of screws and glue.

    Factory Show

    Certification and Patents

    FAQ

    Q: Except the machine, what else do I need?

    A: You still need an air compressor, you can buy it from local market, 50-60Psi for one welder to seal slab cases.

    Q: If the machine has any problem, how about your after-service?

    A: We will set all parameters well before shipping, but there perhaps will be some items loose or parameter change during transportation. We will send video guideline instruction to you about how to adjust it, we can also have video calls.

    Applications

    Suitable for welding, riveting and implant molding of fine ABS, PE, PC PS, PVC,PP, SAN, PA, acrylic, nylon, ABS and PC composite materials.  As long as the welding head is changed, it can be used in a variety of applications, widely used in electronics, electrical appliances, automotive parts, plastic toys, stationery, daily necessities, handicrafts, cosmetics and other industries.

    Suitable1 Suitable2
