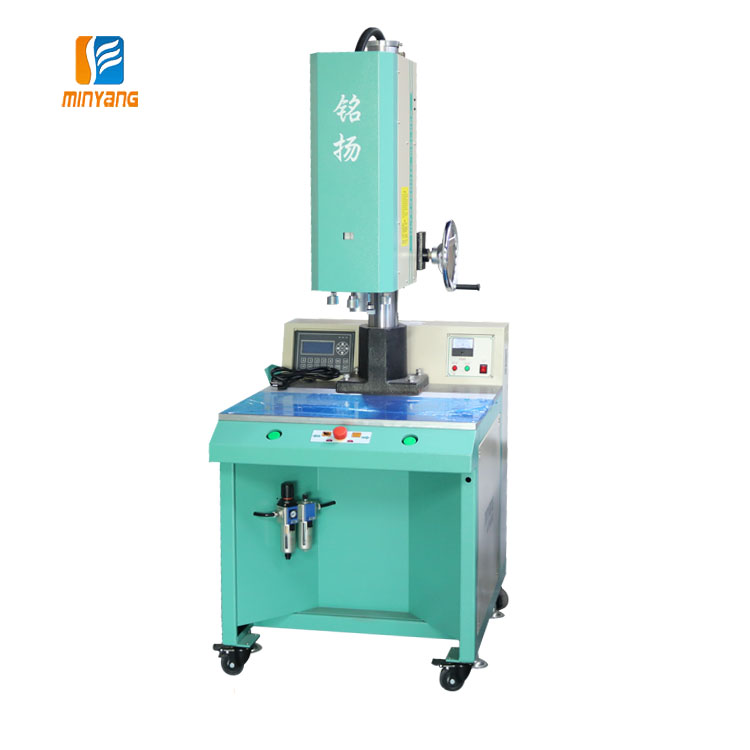

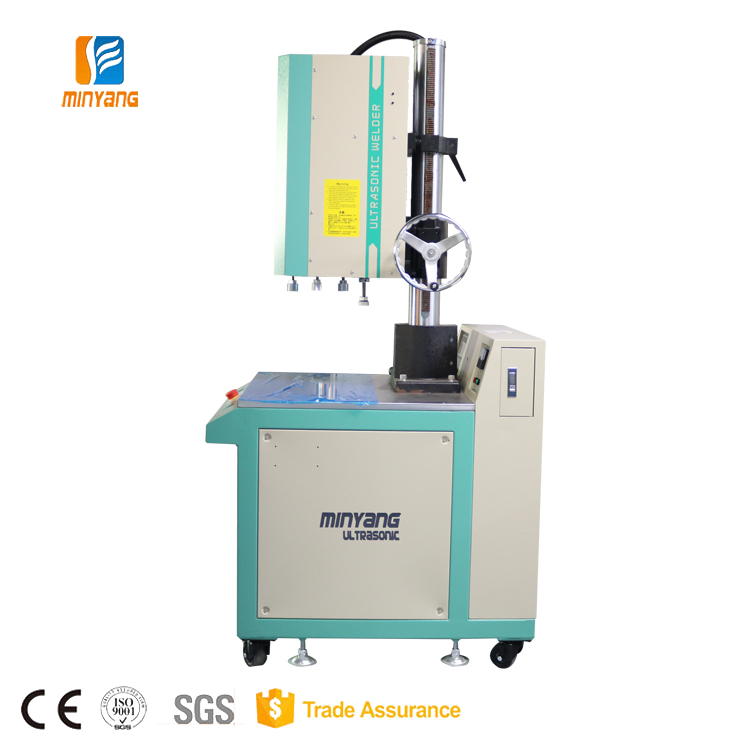

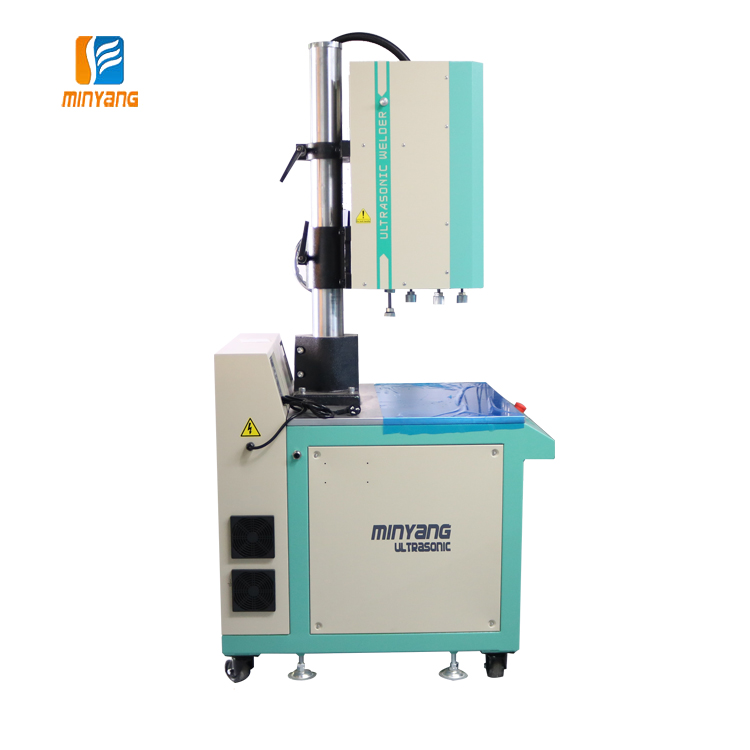

20KHZ High Power Standard Ultrasonic Plastic Welding Machine

Short Description:

We are a factory professionally engaged in high power ultrasonic plastic equipment for many years; The high power table type ultrasonic plastic welding machine has:

Automatic frequency tracking; Intelligent control system;

High Power suitable weld large product;

English/Chinese digital operation screen;

Model: MY-HPP03-2042TH-S/MY-HPP03-2056TH-S
Frequency: 20k
Power:4200w/5600w
Voltage: 110V/220V


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Product Detail

    Contact Us

    Product Tags

    Specification

    Model MY-HPP03-2042TH-S MY-HPP03-2056TH-S
    Frequency 20k 20k
    Power 4200w 5600w
    Voltage 110v/220v 110v/220v
    Welding time 0.01-9.99s 0.01-9.99s
    Weight 340kg 340kg
    Machine Size 955*750*1980mm 955*750*1980mm
    Warranty 1 year 1 year
    Service OEM/ODM OEM/ODM
    Driven Type Pneumatic(air Pipe diameter 8mm) Pneumatic(air Pipe diameter 8mm)
    Air pressure 0.1-0.7Mpa 0.1-0.7Mpa

    Features

    Here are the features of the high power ultrasonic plastic equipment, we will offer you the most suitable ultrasonic solution according to your welding requirements and your products.

    1. High power output and Accurate time control Square column and high pressure steel frame.

    2. Frequency and power display screen: Chinese/English

    3. Manual automatic function: Supply

    4. Automatic frequency tracking: Supply

    5. Weld height control: Supply

    6. Welding mode:Energy mode and time mode

    7. Adopt Japanese NTK vibrator and King brand steel and titanium alloy amplitude.

    8. Floor type overall design, large integrated workable, with movable wheel for easy handling.

    9. Adopt intelligent control system;

    10. Soundproof box can be chosen

    11. Loading and unloading system can be chosen

    Competitive Advantage

    △ High efficiency---It only takes 0.1-3 seconds at each time.

    △ High strength---Weld joints can withstand big tensile force and high pressure.

    △ High quality---Weld joints are water-tight and air-proof; airtight operation is guaranteed.

    △ Economy---Keep costs down and reduce manpower by getting rid of screws and glue.

    Factory Show

    Certification

    FAQ

    Q: Could you customized the machine based on our requirement?

    A: Yes, we can. The mould could be customized based on your samples, the voltage can be 110V or 220V, the plug can be replaced with yours before shipment.

    Q: What do I need to provide to get the right welding scheme and price?

    A: Please provide the material, size of your product and your welding requirements, such as waterproof, tight air, etc.   You'd better provide product 3D drawings , and we can help to check if the drawings need to be changed. So that the plastic product design could meet the requirements of ultrasonic welding technology.
