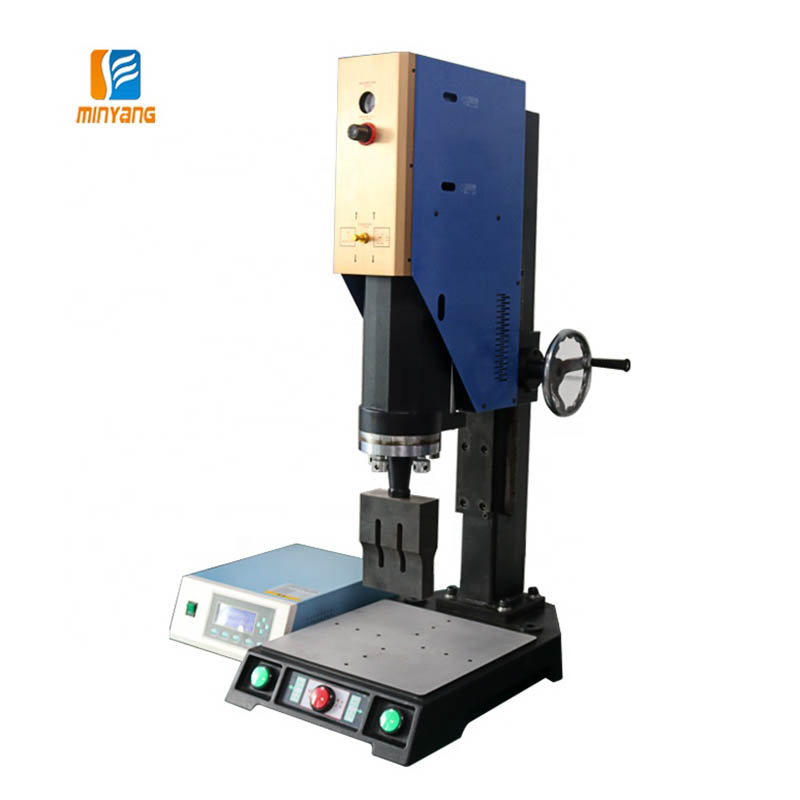

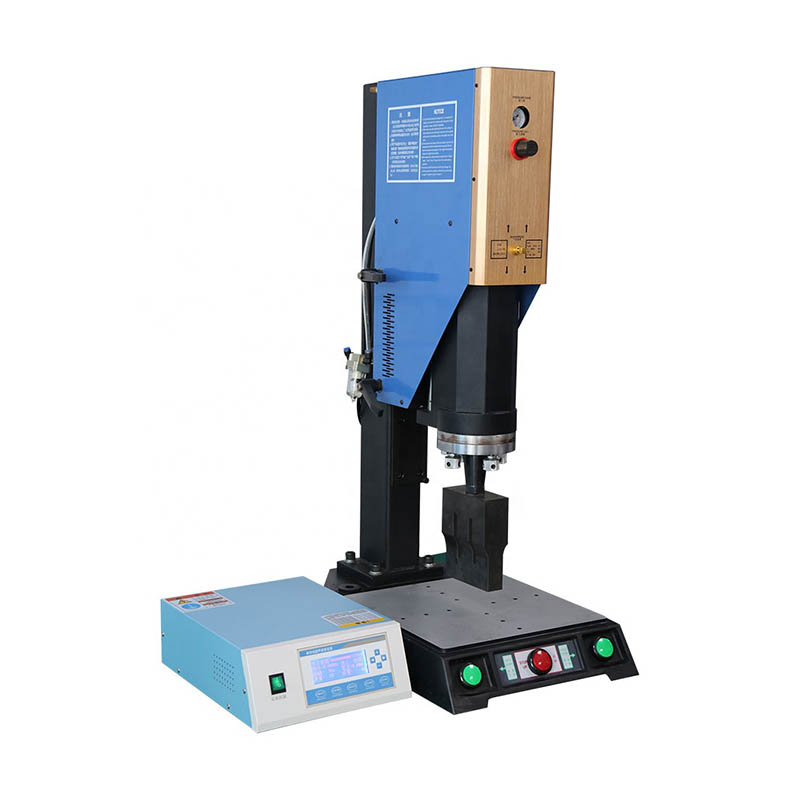

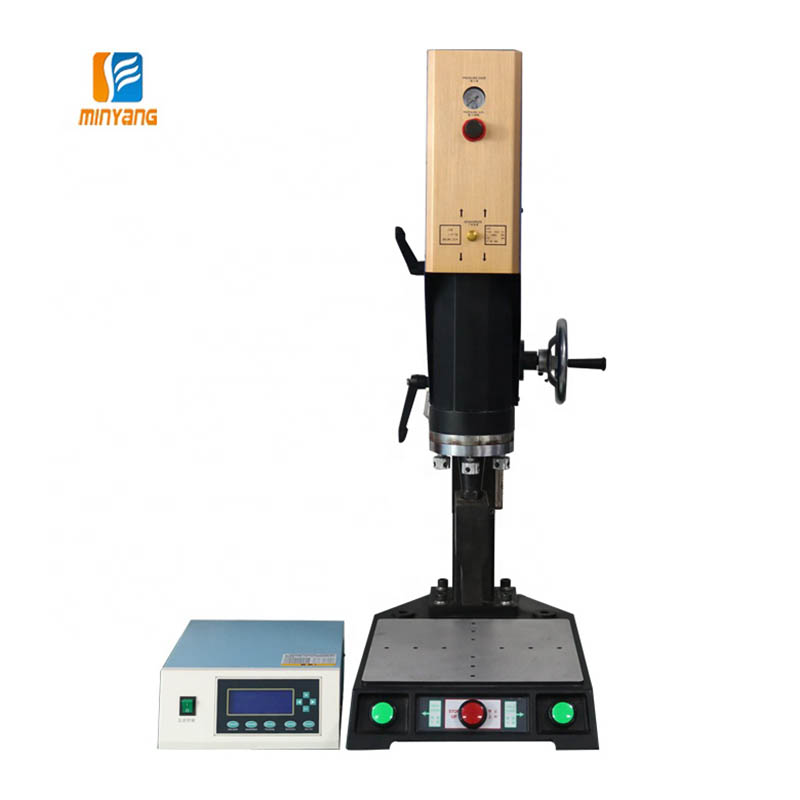

20KHZ Ultrasonic Welder for Welding Remote Control and toy Guns

Short Description:

We have professionally engaged in Ultrasonic Welding Machine for many years.The ultrasonic welding machine has:

Time and energy welding mold

automatic frequency control;

Automatic data storage

Automatic display of machine malfunction

Model: MY-PT2022-CS
Frequency: 20k
Power: 2200w/2600w/3200w
Voltage: 110V/220V

Mould: can be customized by your products


Product Detail

Contact Us

Product Tags

Specification

Model MY-PT2022-CS   MY-PT2026-CS   MY-PT132-CS
Frequency 20k 20k 20k
Power 2200w 2600w 3200w
Voltage 110v/220v 110v/220v 110v/220v
Welding Air Pressure 0.5~0.8Mpa 0.5~0.8Mpa 0.5~0.8Mpa
Welding time 0.01-9.99s 0.01-9.99s 0.01-9.99s
Weight 120kg 120kg 120kg
Machine Size 700*398*1185mm 700*398*1185mm 700*398*1185mm
Warranty 1 year 1 year 1 year
Service OEM/ODM OEM/ODM OEM/ODM
Driven Type Pneumatic(air Pipe diameter 8mm) Pneumatic(air Pipe diameter 8mm) Pneumatic(air Pipe diameter 8mm)

Features

Here are the features of the ultrasonic plastic welding machine, we will offer you the most suitable ultrasonic solution based on your welding requirements and your products.

1. Classical analog type ultrasonic welder, simple operation.

2. Quick application changeover, high welding seam strength.

3. Suitable for high cadences and short cycle times production needs.

4. Solid-steel structure design can last for multiple decades.

5. Imported Pneumatic parts guarantee the stable welding.

6. High quality transducer and booster, durable and stable.

7. Three levels self-protection are provided: Over-Current, Frequency Deviation,Over-Temperature

Competitive Advantage

△ High efficiency---It only takes 0.1-3 seconds at each time.

△ High strength---Weld joints can withstand big tensile force and high pressure.

△ High quality---water-tight and air-proof and airtight welding effect can be chosen.

△ Economy---Keep costs down and reduce manpower by getting rid of screws and glue.

Factory Show

Certification

FAQ

Q: Could you customized the machine based on our requirement?

A: Yes, we can. The mould could be customized based on your samples, the voltage can be 110V or 220V, the plug can be replaced with yours before shipment.

Q: What do I need to provide to get the right welding scheme and price?

A: Please provide the material, size of your product and your welding requirements, such as waterproof, tight air, etc.   You'd better provide product 3D drawings , and we can help to check if the drawings need to be changed. So that the plastic product design could meet the requirements of ultrasonic welding technology.
