20KHZ Intelligent Ultrasonic Welder for Medical Equipment and Electrical Appliance

Short Description:

We are a professional manufacturer of intelligent ultrasonic equipment.

Automatic digital tracking; Digital amplitude control;

Controllable starting speed; Diversified welding modes;

Record the parameters of each welding

Self-diagnosis and control;counter tracking production

Model: MY-SZN2022-S/MY-SZN2026-S/MY-SZN2032-S
Frequency: 20k
Power: 2200w/2600w/3200w
Voltage: 110V/220V

Mould: can be customized by your products


Product Detail

Contact Us

Product Tags

Specification

Model MY-SZN2022-S   MY-SZN2026-S   MY-SZN2032-S
Frequency 20k 20k 20k
Power 2200w 2600w 3200w
Voltage 110v/220v 110v/220v 110v/220v
Welding time 0.01-9.99s 0.01-9.99s 0.01-9.99s
Weight 120kg 120kg 120kg
Machine Size 700*398*1185mm 700*398*1185mm 700*398*1185mm
Warranty 1 year 1 year 1 year
Service OEM/ODM OEM/ODM OEM/ODM
Driven Type Pneumatic(air Pipe diameter 8mm) Pneumatic(air Pipe diameter 8mm) Pneumatic(air Pipe diameter 8mm)



Features

Here are the features of the intelligent ultrasonic plastic welder, we will provide you with the most suitable ultrasonic solution according to your welding requirements.

Three modes: energy mode, time mode and depth mode

2. Adopt CHEKIC pneumatic pats and control system, the output power is stable.

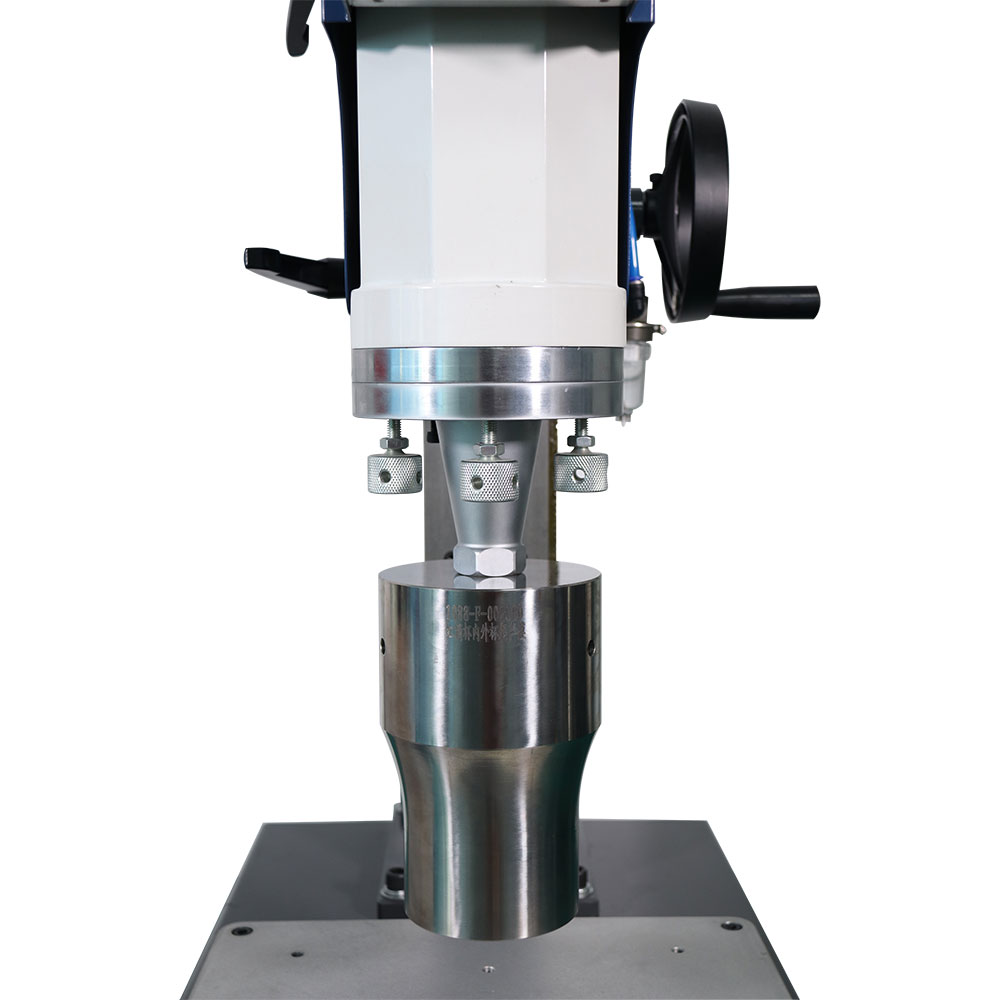

3. Adopt the Original transducer from Taiwan, titanium alloy booster is sturdy and durable, steel frame with square column, Rapid high pressure operation with no tilt.

4.Adopt the digital voltage regulator of generator, the output power is stable, Humanized touch screen operation, password protection management, welding parameters can be preserved.   Amplitude adjustable.

Variety of intelligent welding modes can be chosen,automatic frequency tracking, and high welding precision.

Competitive Advantage

△ High efficiency---It only takes 0.1-3 seconds at each time.

△ High strength---Weld joints can withstand big tensile force and high pressure.

△ High quality---Weld joints are water-tight and air-proof; airtight operation is guaranteed.

△ Economy---Keep costs down and reduce manpower by getting rid of screws and glue.

Factory Show

Certification

FAQ

Q: Could you customized the machine based on our requirement?

A: Yes, we can. The mould could be customized based on your samples, the voltage can be 110V or 220V, the plug can be replaced with yours before shipment.

Q: What do I need to provide to get the right welding scheme and price?

A: Please provide the material, size of your product and your welding requirements, such as waterproof, tight air, etc.   You'd better provide product 3D drawings , and we can help to check if the drawings need to be changed. So that the plastic product design could meet the requirements of ultrasonic welding technology.
