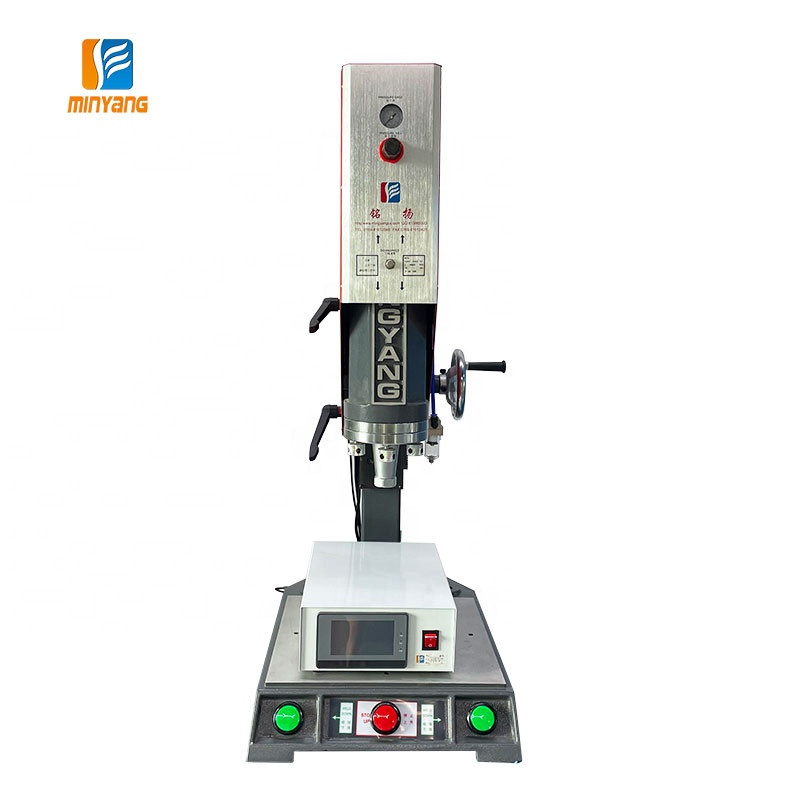

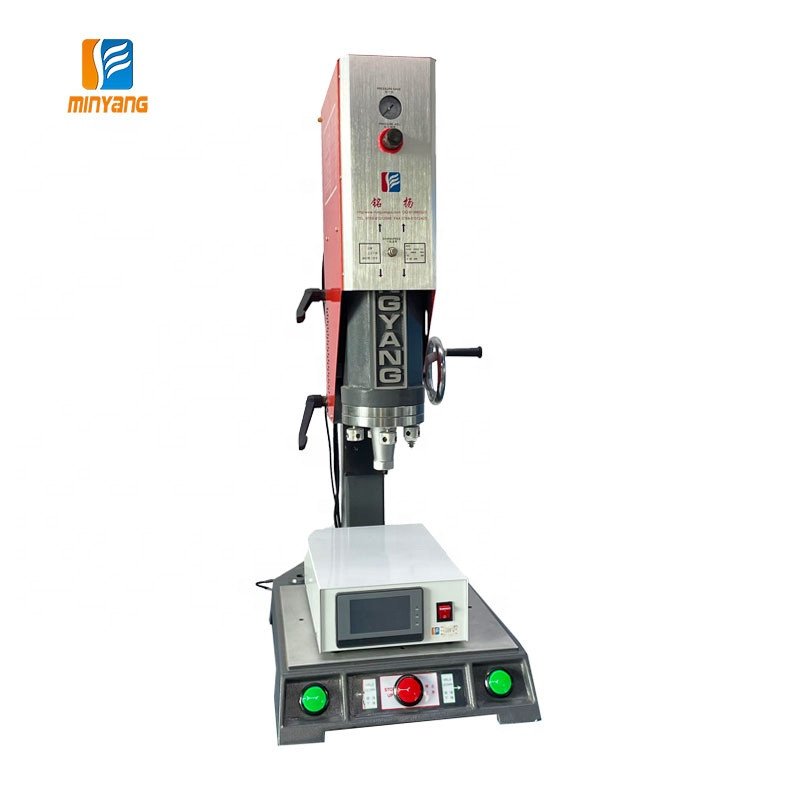

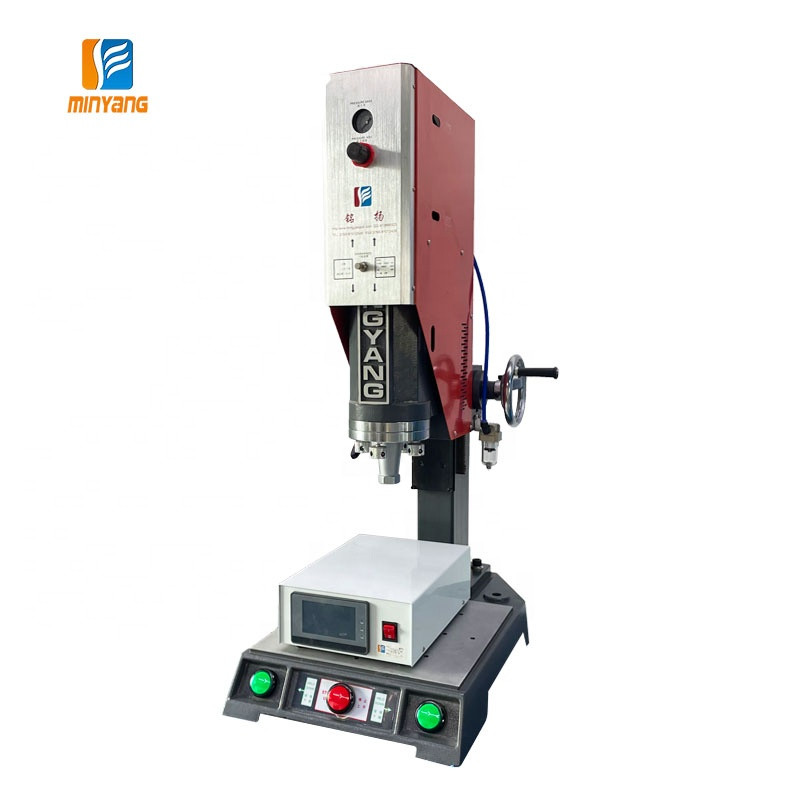

15KHZ 3200W Ultrasonic Welding Machine for Plastic Products

Short Description:

Chinese and English operation screen; Time and energy welding mold   automatic frequency control; Automatic data storage Automatic display of machine malfunction

  • Model: MY-SZ1522-S
  • Frequency: 15k
  • Power: 3200w
  • Voltage: 110V/220V
  • Mould: Can be customized by your products
  • Product Detail

    Contact Us

    Product Tags


    Model MY-SZ1532-S
    Frequency 15k
    Power 3200w
    Voltage 110v/220v
    Welding Air Pressure 0.5~0.8Mpa
    Welding time 0.01-9.99s
    Weight 120kg
    Machine Size 400*650*1100mm
    Warranty 1 year
    Service OEM/ODM
    Driven Type Pneumatic air Pipe diameter 8mm


    1. Classical analog type ultrasonic welder, simple operation.

    2. Quick application changeover, high welding seam strength.

    3. Suitable for high cadences and short cycle times production needs.

    4. Solid-steel structure design can last for multiple decades.

    5. Imported Pneumatic parts guarantee the stable welding.

    6. High quality transducer and booster, durable and stable.

    7. Three levels self-protection are provided: Over-Current, Frequency Deviation,Over-Temperature

    Competitive Advantage

    △ High efficiency---It only takes 0.1-3 seconds at each time.

    △ High strength---Weld joints can withstand big tensile force and high pressure.

    △ High quality---Weld joints are water-tight and air-proof; airtight operation is guaranteed.

    △ Economy---Keep costs down and reduce manpower by getting rid of screws and glue.

    Factory Show

    Certification and Patents


    Q: Could you customized the machine based on our requirement?

    A: Yes, we can. The mould could be customized based on your samples, the voltage can be 110V or 220V, the plug can be replaced with yours before shipment.

    Q: Except the machine, what else do I need?

    A: You still need an air compressor, you can buy it from local market, 50-60Psi for one welder to seal slab cases.

    Q: Could you provide any help about the machine operation?

    A: Yes, after receipt the machine, we will send you a video guide about how to use the machine.

    Q: If the machine has any problem, how about your after-service?

    A: We will set all parameters well before shipping, but there perhaps will be some items loose or parameter change during transportation. We will send video guideline instruction to you about how to adjust it, we can also have video calls.

    Q: How can we proceed an order?

    A: After receiving the appropriate quotation from us, we can collect the deposit according to your project, after reviewing the perfect welding effect, please arrange balance payment before shipping


    Suitable for welding, riveting and implant molding of fine ABS, PE, PC PS, PVC,PP, SAN, PA, acrylic, nylon, ABS and PC composite materials.  As long as the welding head is changed, it can be used in a variety of applications, widely used in electronics, electrical appliances, automotive parts, plastic toys, stationery, daily necessities, handicrafts, cosmetics and other industries.

    Suitable1 Suitable2
