18KHZ Standard Ultrasonic Welder with Automatic Roll Film Machine

Short Description:

We are a professional manufacturer of the standard welder with automatic roll film machine; It has the imported pneumatic parts and high quality transducer and booster, it operate easily and could be used for a long time. The machine with automatic roll film machine, which keeps the fine welding appearance.

Model: MY-PT02-1810RF-S/MY-PT02-1815RF-S/MY-PT02-1820RF-S/MY-PT02-1822RF-S/MY-PT02-1826RF-S

Frequency: 18k

Power: 1000w/1500W/2000W/2200W/2600W

Voltage: 110V/220V

Mould: can be customized by your products


Product Detail

Contact Us

Product Tags

Specification

Model MY-PT02-1810RF-S  MY-PT02-1815RF-S MY-PT02-1820RF-S MY-PT02-1822RF-S MY-PT02-1826RF-S
Frequency 18k 18k 18k 18k 18k
Power 1000w 1500w 2000w 2200w 2600w
Voltage 110v/220v 110v/220v 110v/220v 110v/220v 110v/220v
Welding Air Pressure 0.1~0.7Mpa 0.1~0.7Mpa 0.1~0.7Mpa 0.1~0.7Mpa 0.1~0.7Mpa
Welding time 0.01-9.99s 0.01-9.99s 0.01-9.99s 0.01-9.99s 0.01-9.99s
Weight 120kg 120kg 120kg 120kg 120kg
Machine Size 400*650*1180mm 400*650*1180mm 400*650*1180mm 400*650*1180mm 400*650*1180mm
Warranty 1 year 1 year 1 year 1 year 1 year
Service OEM/ODM OEM/ODM OEM/ODM OEM/ODM OEM/ODM
Driven Type Pneumatic(air Pipe diameter 8mm) Pneumatic(air Pipe diameter 8mm) Pneumatic(air Pipe diameter 8mm) Pneumatic(air Pipe diameter 8mm) Pneumatic(air Pipe diameter 8mm)

Features

Here are the features of the standard welder with automatic roll film machine, we will offer you the most suitable ultrasonic solution based on your welding requirements.

1.Classical analog type ultrasonic welder, simple operation.

2.Quick application changeover, high welding seam strength.

3.Suitable for high cadences and short cycle times production needs.

4.Solid-steel structure design can last for multiple decades.

5.Imported Pneumatic parts guarantee the stable welding.

6.High quality transducer and booster, durable and stable.

7.Over-Current self-protection

8.Machine with roll film, keep the fine welding appearance

9.We will provide you with the most suitable ultrasonic solution according to your welding requirements

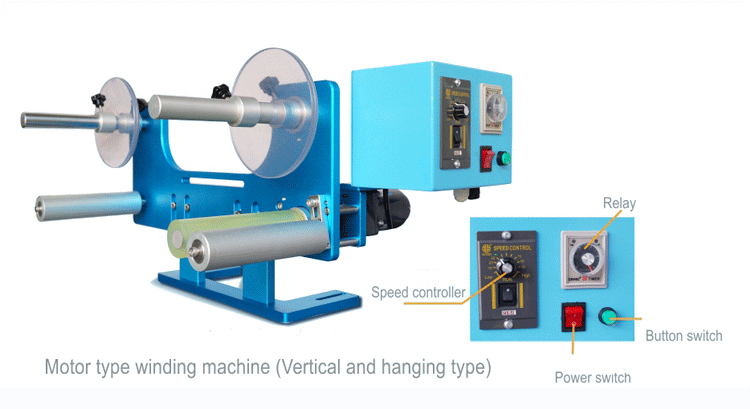

3. automatic roll film machine for  ultrsonic welder

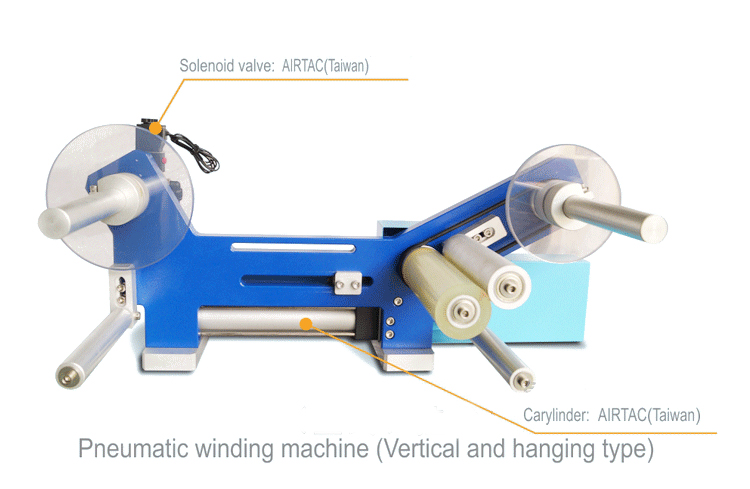

4. automatic roll film machine for ultrsonic welding machine

Competitive Advantage

△ High efficiency---It only takes 0.1-3 seconds at each time.

△ High strength---Weld joints can withstand big tensile force and high pressure.

△ High quality---water-tight and air-proof and airtight welding effect can be chosen.

△ Economy---Keep costs down and reduce manpower by getting rid of screws and glue.

△Roll film-multi types to be chosen

Factory Show

Certification

FAQ

Q: Could you customized the machine based on our requirement?

A: Yes, we can. The mould could be customized based on your samples, the voltage can be 110V or 220V, the plug can be replaced with yours before shipment.

Q: What do I need to provide to get the right welding scheme and price?

A: Please provide the material, size of your product and your welding requirements, such as waterproof, tight air, etc.   You'd better provide product 3D drawings , and we can help to check if the drawings need to be changed. So that the plastic product design could meet the requirements of ultrasonic welding technology.
